US 7,540,120

US7540120 is a United States patent for a Multi-Level Apartment Building. Patent attorneys aren’t likely to be apartment plan geeks so I pity the one whose desk this landed on. Perhaps I shouldn’t, because patent attorneys are skilled in untangling real novelty from mere claims to it. They also understand the importance of precise language because patent language is designed to accurately describe all that’s unique about an invention but at the same time be sufficiently encompassing so that protection isn’t lost if someone else makes some minor improvement or change. Phrases such as substantially and arbitrarily occur often because their meaning is defined. The term disposed is used to mean placed or arranged. The term a plurality of is used to mean a few, several, or many.

The structure of a patent application is also defined. At the beginning is a list of patents to which the invention refers or relates to. Then comes the Abstract. The one for US Patent 7,540,120 doesn’t tell us much because we’re not used to imagining buildings from written descriptions. This particular abstract is an accurate and concise description of the invention – it has to be.

A multi-level apartment building includes vertically stacked sections each containing at least one pair of apartments, where each apartment of an apartment pair contains a stairway assembly coupled to a vertically extending stair support wall assembly that contains utility distribution conduits. The stairway assembly for each apartment connects four levels of function space. One apartment of the pair in a vertical section is rotated 180 degrees in plan in relation to the other apartment of the pair which is entered on the opposite side of a public corridor that provides access to the apartments of the pair. The apartments are vertically stacked in alignment where an apartment of a pair is mirrored in plan in relation to a vertically underlying or overlying apartment of another pair, and the stair support assemblies of the respectively vertically stacked apartments are vertically aligned.

What it doesn’t tell us is why somebody would want to do that. Next comes Description of the Invention. This is divided into sub-sections, the first of which is Field of the Invention.

The present invention relates generally to a multi-level structure and, more particularly, to a multi-level apartment building having a plurality of apartments, where each apartment includes a plurality of rooms on levels connected by a stairway system that is coupled to a stair support wall assembly for receiving vertically extending utility services.

There’s a certain comfort that comes from words meaning exactly what they say, and no more or less.

Next comes Background of the Invention. This sub-section tells you what the existing problems were that led to the invention being proposed as a solution. This is where the case for the invention is made.

The invention itself is described in detail in Summary of the Invention and cross-referenced to Brief Description of the Drawings where each drawing is described in detail. It ought be possible for an architect to fully understand this building from these.

Finally comes the Claims in which everything unique about the invention and worthy of legal protection is isolated and listed in a structured sequence of claims and dependent (sub-) claims. Each claim is written as a single sentence and is not easy reading. Governmental patent offices in the home country and countries around the world make rulings on whether the invention described by the Claims are unique and thus deserving of protection.

•

•

•

The invention of US 7,540,120 has been granted a patent because it solves some identified problem in a unique and novel manner. If only architecture could always be so clear, with the use of words such as unique, novel and innovative limited to legally recognised and precisely described solutions to specifically identified problems.

If a person can’t call themselves an architect without being legally recognized as such, then why not have a similar requirement for architecture?

After all, a patent attorney (or any lawyer, for that matter) would be comfortable with the statement “All hatmakers make hats” but not with the statement “All architects create architecture.” And neither should we. Making architects legally liable for false claims to aesthetic innovation would certainly clear the air, eliminate much noise. We can speculate on this some other time because, for now, I want to find out what’s so special about this novel and innovative architectural invention. It’s not every day one comes along. From the section and plan above it seems like a scissor-plan variant.

For reference, here’s the scissor plan of the 1962 Corringham apartments in London Kenneth Frampton had a hand designing. Scissor plans are confusing, even for the people who made these diagrams trying to explain them. The key to the section says 1 is the living and 2 the entry but it’s the other way around. The plan numbering corresponds to its key but not to the section numbering, even when corrected.

Background to the Invention

Multi-level buildings are a favored form of residential construction because they provide for improved land use and a high density alternative to sprawl. The buildings usually include a plurality of apartments where each of the apart ments is occupied by several individuals, such as a family. Such apartments, however, usually do not include all of the features and amenities that are ordinarily present in a detached suburban home. The apartments typically do not include such detached home features as split level living room and dining room function space, duplex height in a living room function space, duplex height windows as part of the living room space and that provide natural lighting to remote interior portions of the apartment, bedrooms located on separate levels to afford privacy from each other and also communal activities, views on opposite sides of a building, through ventilation, an exposed interior duplex height stairway and balconies without shadows and overhangs. The absence of many of the features and amenities usually present in a detached residence makes conventional apartments unappealing to the more mobile class of residential purchasers. […] Therefore, a need exists for a multi-level apartment building that addresses the needs of sprawling development by containing a plurality of apartments that can be fabricated with relative ease and where each apartment creates the illusion of spaciousness while providing expected amenities and consuming a minimum of floor area.

Frankly, I expected more, but this is the problem the inventors have set themselves to solve and it was judged to be a real and valid one. Their problem was that apartments don’t feel housey enough and they intend to solve this by providing:

1. a split level living room and dining room function space,
2. duplex height in a living room function space,
3. duplex height windows as part of the living room space,
4. bedrooms on separate levels,
5. views on both sides of a building,
6. through ventilation,
7. a dramatic stairway,
8. a balcony some distance from the one above, and
9. creating an apartment having the illusion of spaciousness but consuming a minimum of floor area.

Let’s see!

1. An access corridor runs across the building and apartments either side are mirrored and reversed or, in CADspeak, a copy is horizontally rotated 180° [not vertically around 180° as per a unité].
2. The kitchen/dining area is on the same level as the entrance.
3. The living rooms are on a level slightly lower than the kitchen/dining, and have a ceiling height slightly higher.
4. A staircase in the corner of the living rooms extends upwards to access a minor bedroom above the kitchen/dining of the apartment across the corridor.
5. The same staircase extends downwards to access the master bedroom beneath the kitchen/dining of the apartment across the corridor.

•

•

•

•

•

This basic unit can be repeated horizontally any number of times, and vertically as well if vertically alternate units are reversed, interlocked and stacked an arbitrary number of times. Don’t forget that a patent application describes a general principle and doesn’t need to describe what happens at the end of the building where a living room is minus a kitchen/dining room, or at the other end of the building where the kitchen/dining room lacks corresponding bedrooms and living area.

The German application for the invention includes the following two helpful diagrams.

•

•

Bathrooms of one unit and the kitchen of another are thus sandwiched between living rooms above and below and this is why the stairwell support wall must have services run through it.

In a patent application, the variation described in most detail is called the preferred embodiment (manifestation) of the invention in order to exclude other inventions that are substantially identical. These are also anticipated in the descriptions of other embodiments. The ones listed all divide the minor bedroom to configure a three-bedroom apartment and also feature alternative arrangments for the staircase – presumably to get the service riser out of the living room.

The inventors have solved most of the problems they set out to solve.

• There is a split-level living room and dining room.
• The living room is double-storey height.
• There are double-storey windows.
• Bedrooms are on separate levels.
• The apartment has views in two opposite directions.
• Some degree of cross ventilation exists.
• The staircase is indeed dramatic even if it only goes to a minor bedroom.
• Vertically above and below each double-height living room are two bedroom levels and a kitchen level so there are five floors betwen [vertically adjacent] living room balconies.

•

•

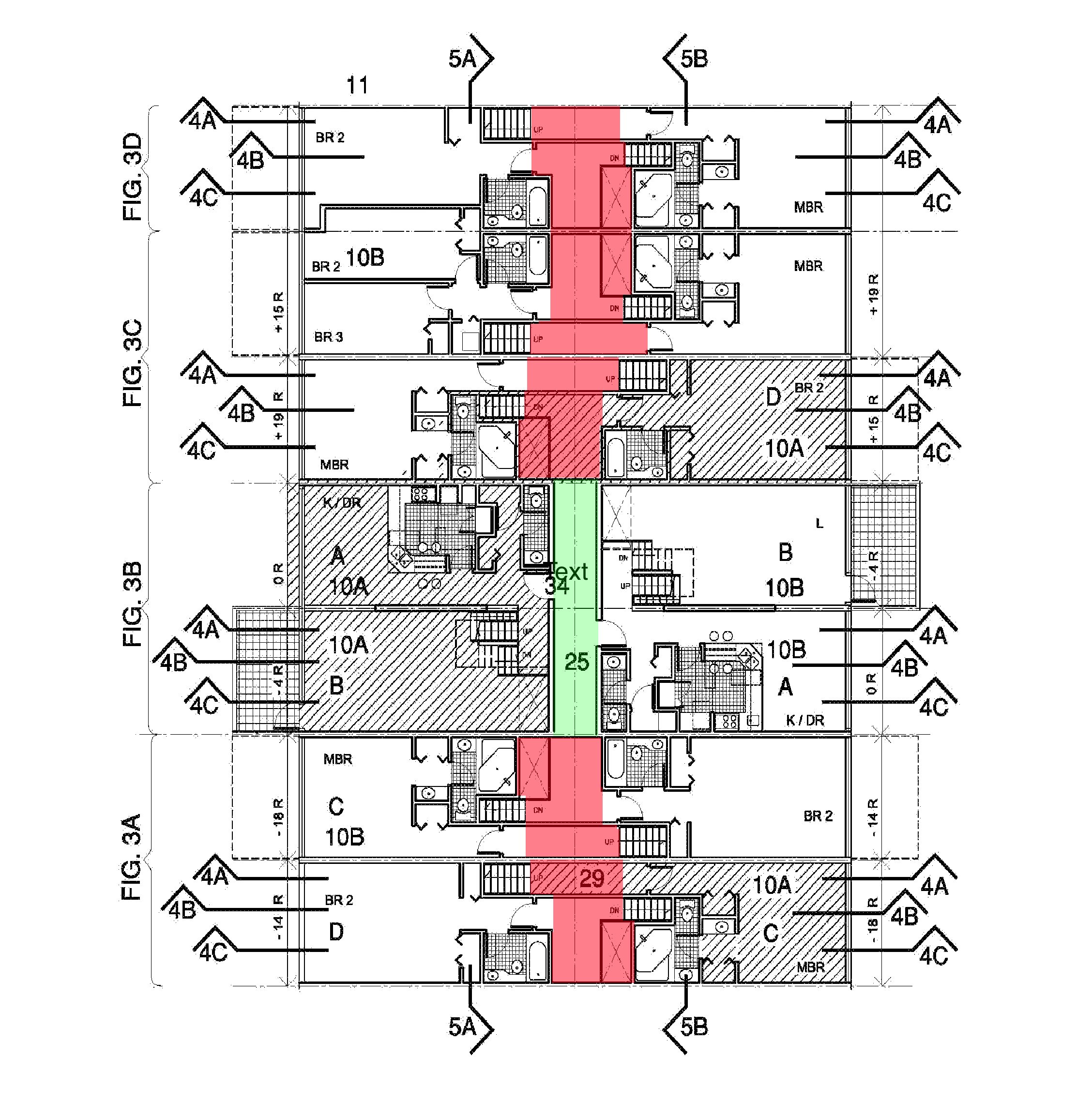

However, I’m not sure they have succeeded in creating an apartment having the illusion of spaciousness but consuming a minimum of floor area because, for one, I don’t know how it would be possible to objectively evaluate the success of an illusion. I’m also not sure if it has been done consuming a minimum of floor area. The typical plan below shows how the space (indicated in red) above/below the corridor (green) is not being used for any purpose than to pass over/under the corridor and contrive a double-sided apartment. The solution thus solves one problem but creates another. There may be the illusion of spaciousness and certain amenities (including the benefit of inscrutability) but it can only be said to consume a minimum of floor area until somebody comes along and solves the same problem in less.

The inventors did succeed in what they set out to do but they did not set the bar very high.

• Apartments might be more attractive to more people if they successfully create the illusion of being more like detached houses but is a split-level living room and dining room, or a dramatic staircase really the best way to go? And if not what is? For some people, for example, a house might be all about opening the kitchen door to let the dog in, or having a basement and an attic. Instead of creating the illusion of an apartment being more like a house, it might be more worthwhile to explore what advantages apartments have that detached houses don’t.
• A first, I thought the configuration was a scissor plan variant but it turned out not to be so. Having all living rooms on a preferred side of the building was not a problem the invention aimed to solve. There is scope for some other, future invention to incorporate this feature and be a completely new invention.
• I also initially expected it would be possible to horizontally extend apartments by making appropriate openings (and/or closures) in party walls to enlarge or reduce the volume of the apartment but this is not the case. We still lack a multi-storey apartment building configuration with the potential to be arbitrarily extended horizontally by having wall openings that can be arbitrarily opened/closed to access different staircases and their adjacent spaces. Such a method of configuring apartments would use similar elements and spaces to configure apartments of varying sizes and shapes and thus have advantages for construction cost and time savings. The challenge would be to do it with a minimum of walls having only latent party wall functionality and, as ever, a minimum of circulation space.

Good luck and let me know how you get on!
